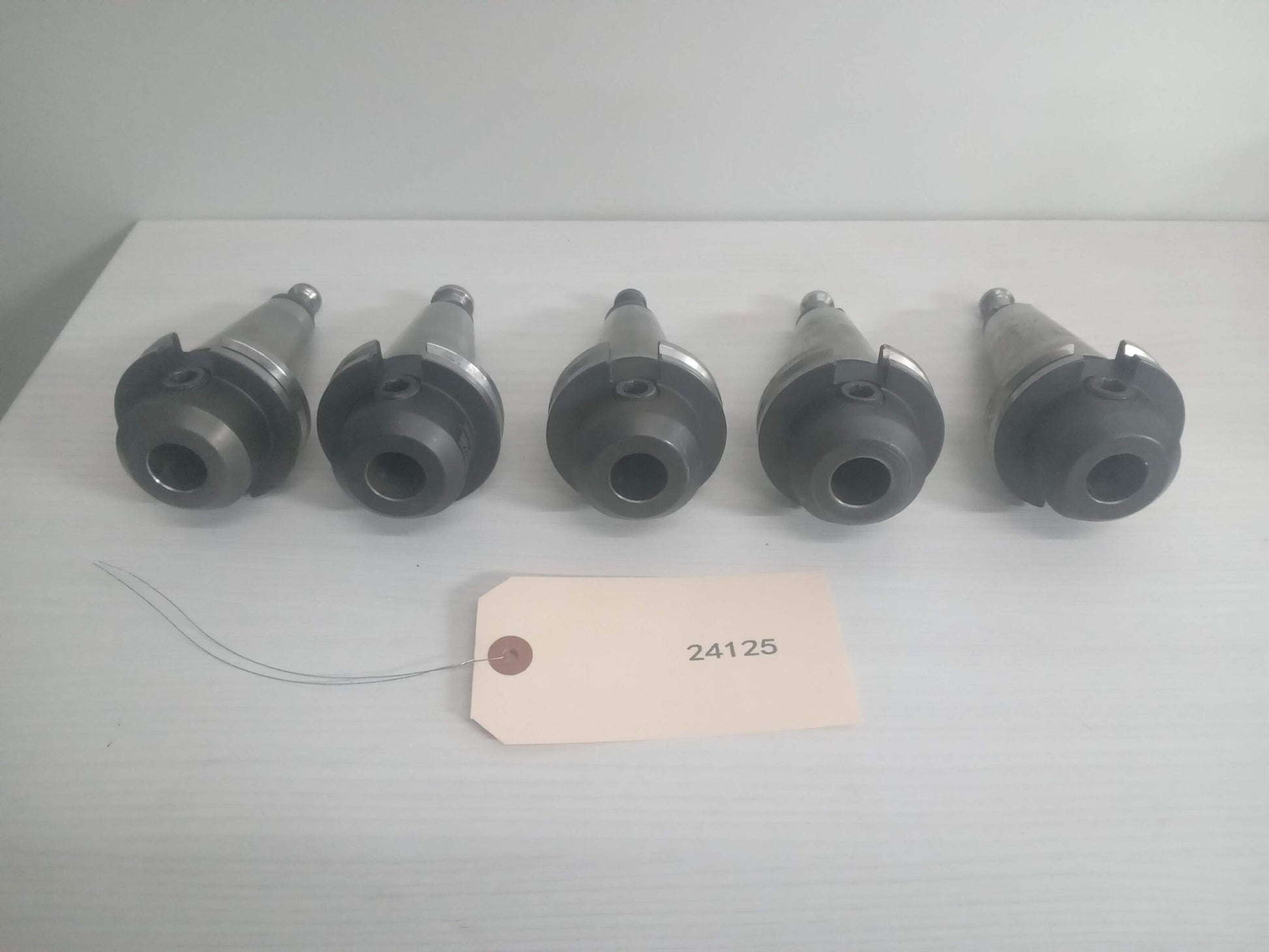

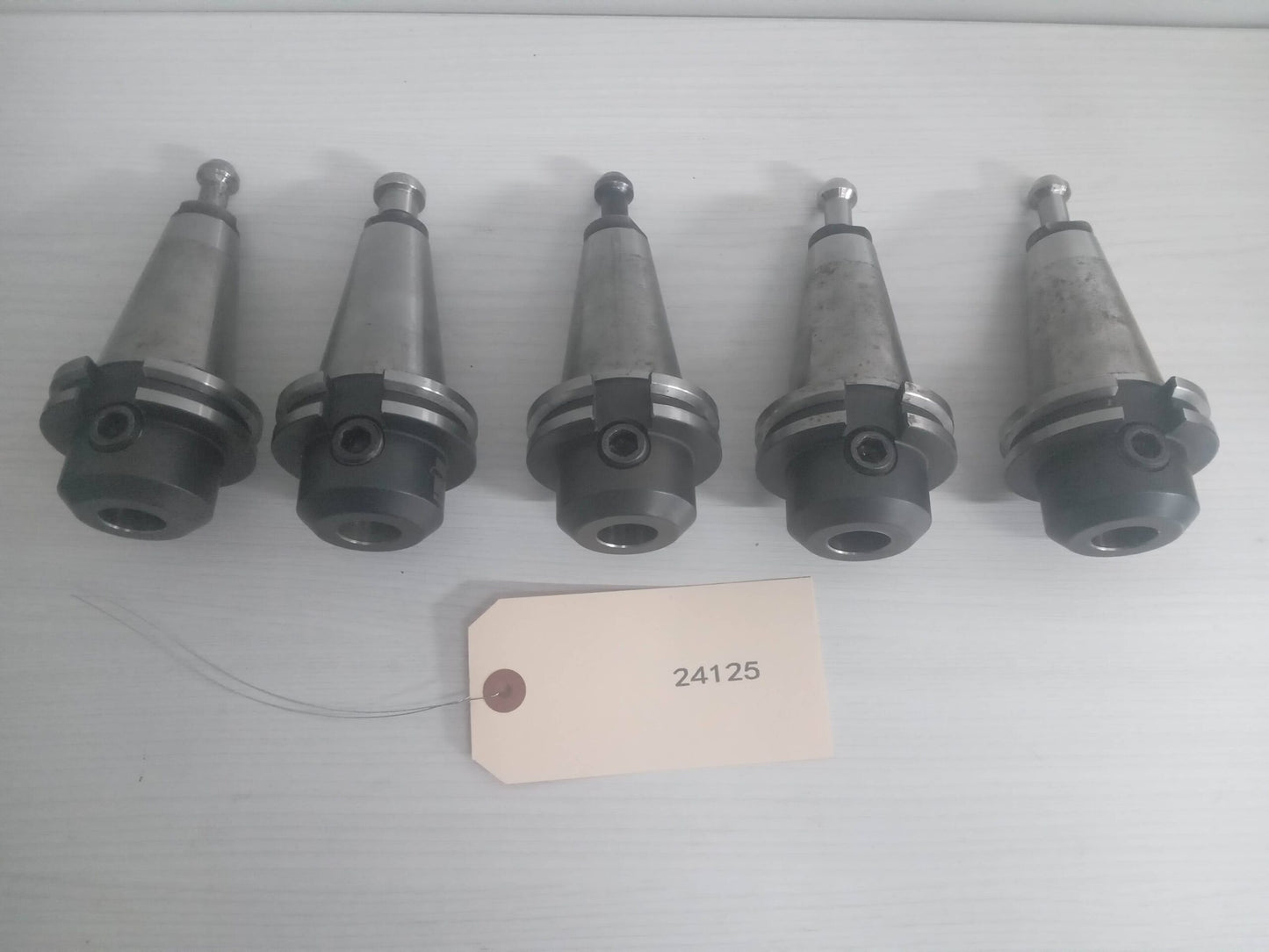

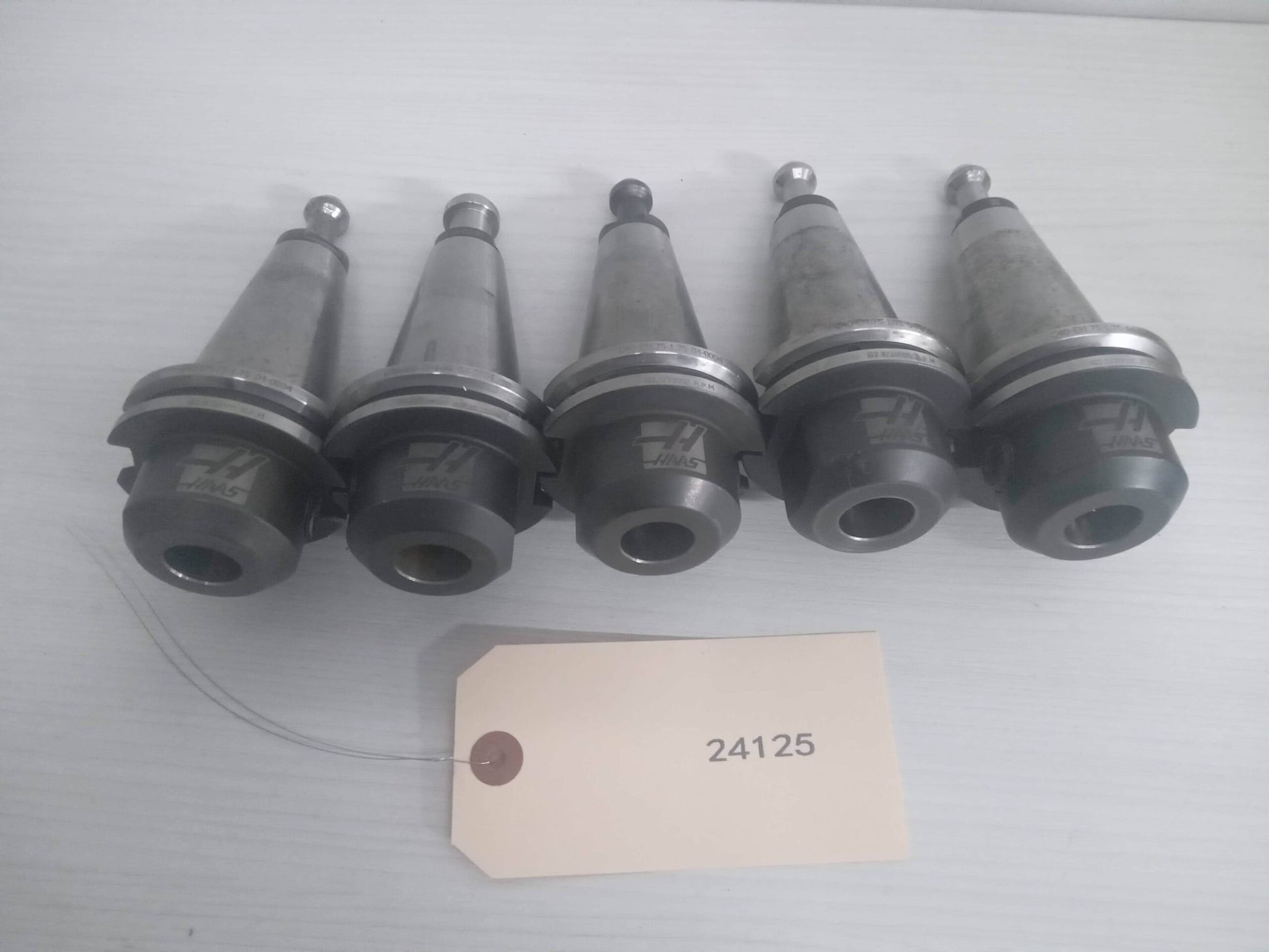

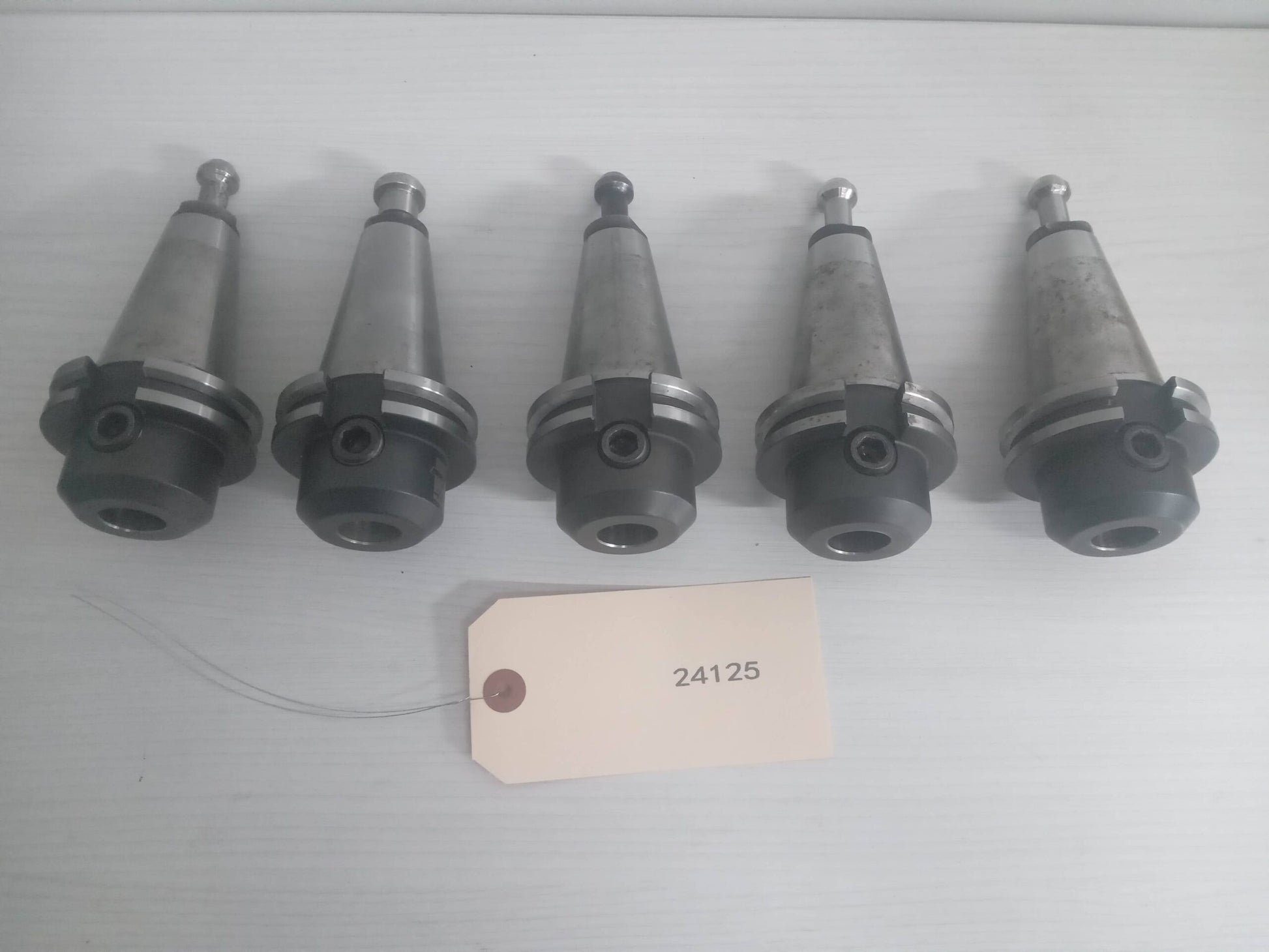

5x CAT40 3/4" End Mill Holder x 1-3/4" Gage Length, TSC Haas Part #: 04-0004

Lot of five (5) Cat40 Tool Holders from Haas Haas Part #: 04-0004 One holder has a Mori Style retention knob, Other 4 are included, please verify that these are proper for your machine prior to use. they are not the Through Spindle Coolant type. *The tool holders support through spindle coolant themselves, but the pull studs will need to be changed to pull studs that do support TSC* C40-EM.75-1.75 04-0004 G2.5/20000 RPM CAT40 3/4" End Mill Holder x 1-3/4" Gage Length, TSC Haas Part #: 04-0004 This CAT40 end mill holder has a 0.75 in \ 3/4" bore diameter and a 1-3/4" gage length. It uses the Weldon flat standard with side-lock clamping for secure clamping of cutting tools. It is through-tool coolant (TSC) capable, with a 5/8"-11 pull stud/retention knob thread. System of Measurement Inch - ANSI Taper CT40 [ØD] Bore Diameter 0.75 in \ 3/4" [ØBD] Body Diameter 1.75 in [GL] Gage Length 1.75 in [BL] Body Length 1.0 in [TP1] Thread 5/8"-18 Concentricity 0.0002 in Balanced to RPM 20,000 Bore Tolerance H5 Retention Knob Thread Size 5/8"-11 Through Tool Coolant Yes Spindle Drive Slots Yes Weight 2.3 lbs \ 1.1 kg
