Specifications:
Interface:
- USB Type A Port to insert USB flash stick
- 4-pin floppy socket for voltage supply

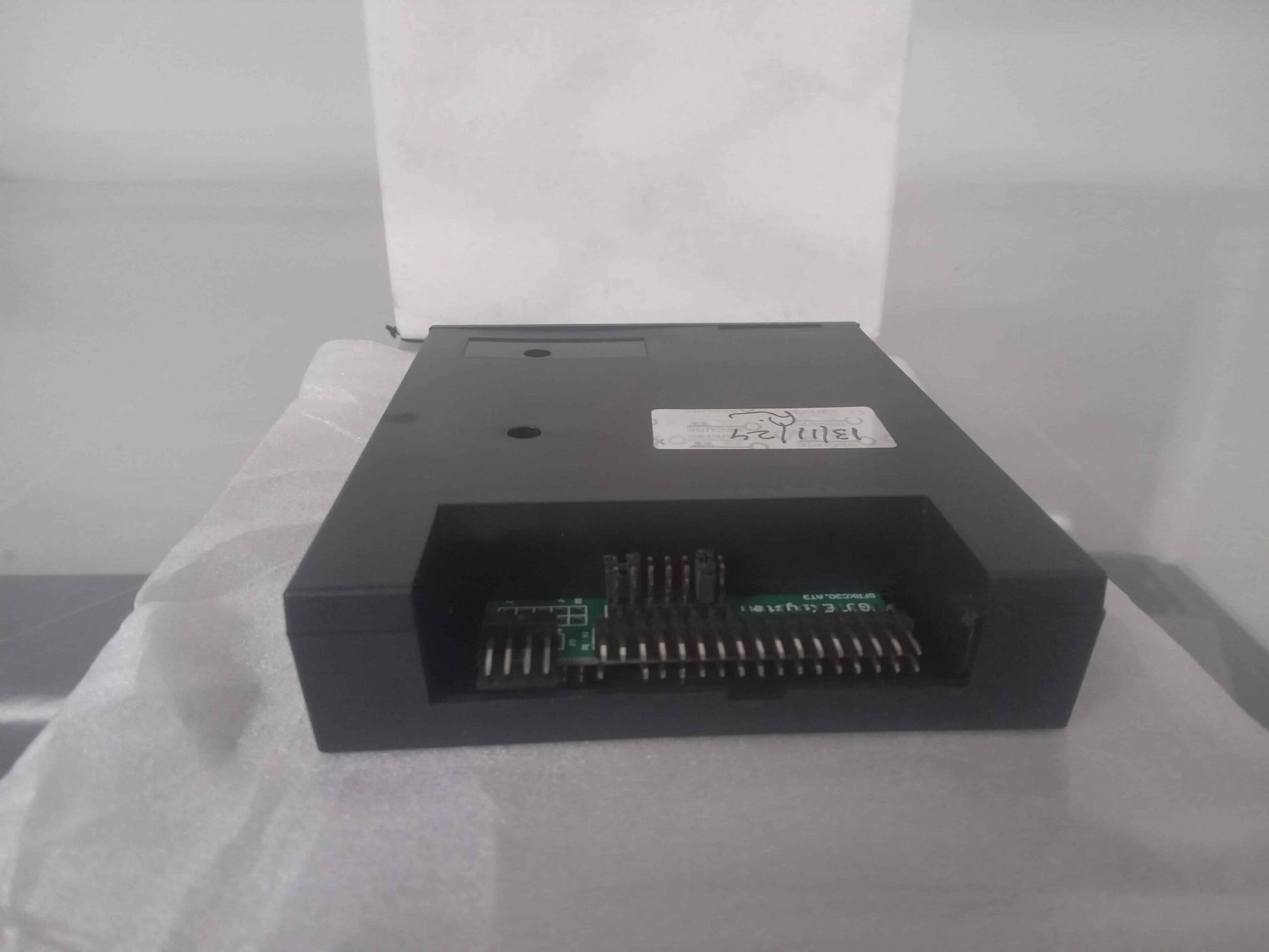

- 34-pin socket board for floppy controller connection
Diagnostics LED: Busy

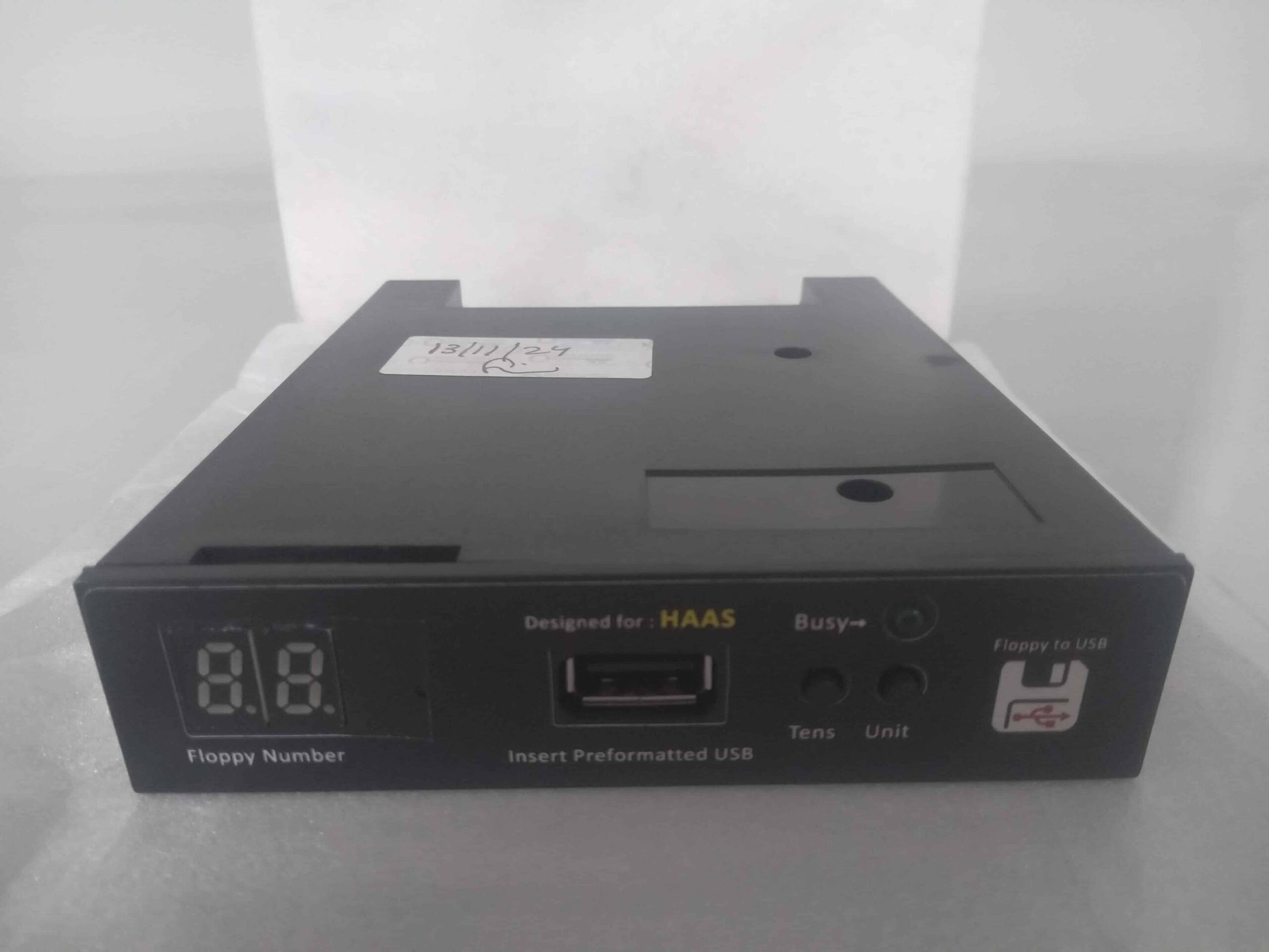

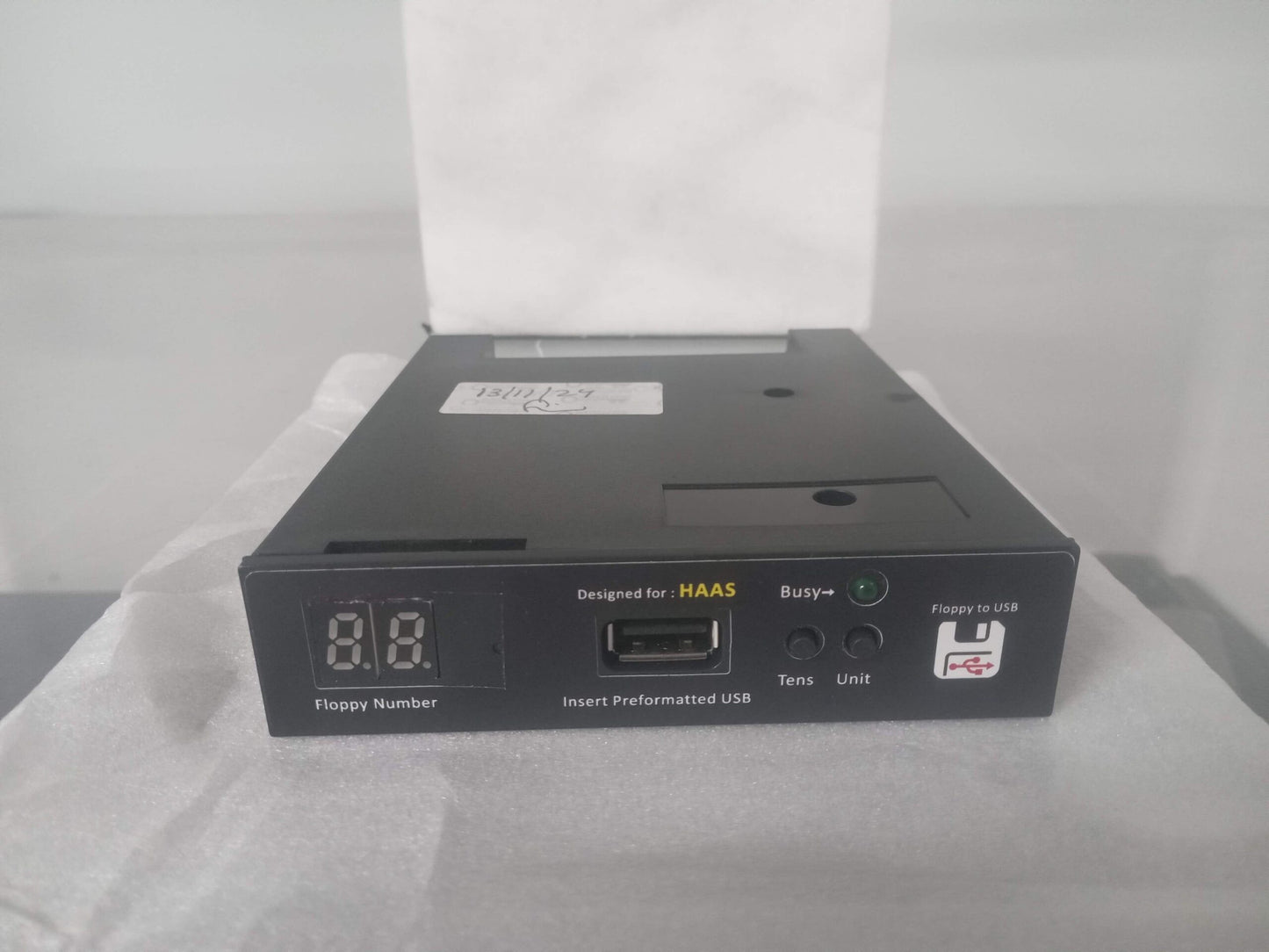

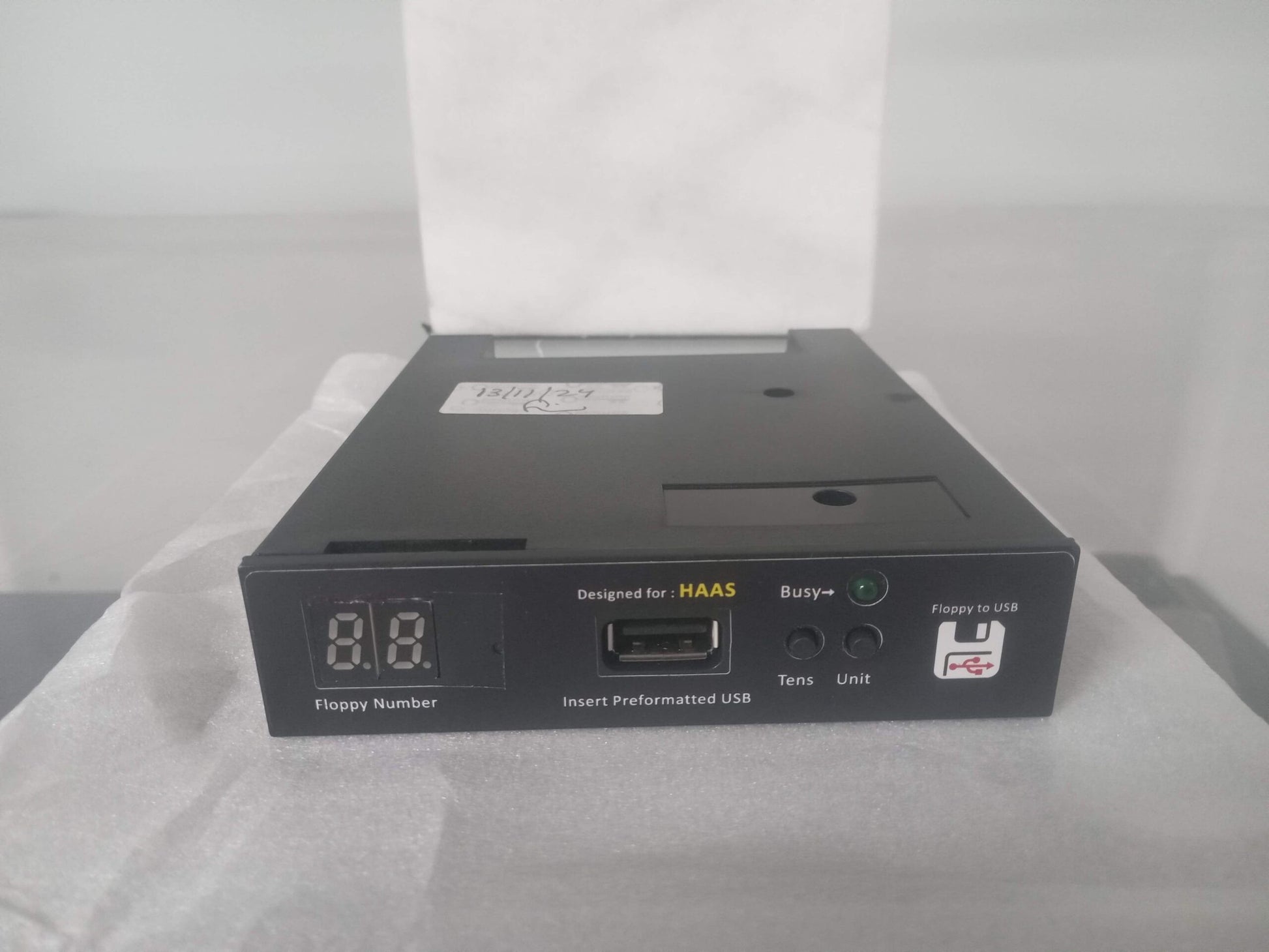

Display: Digital display to show currently selected virtual floppy partition
Selection buttons: 2 buttons to select a floppy partition. One button controls one digit. This helps you select a virtual floppy partition easily and quickly.
· Format type supported: 1.44mb
· Storage Capacity : 1 Pen drive can store data of up to 100 virtual floppy partitions. ( 1.44mb x 100 )
· Voltage supply: 5V DC, 4-pin-voltage supply socket for 3.5 inch drive
· Measurements W/H/D: approx. 100 mm / 25 mm / 122 mm. Fits into the 3.5 inch Floppy drive bay on Haas Machines.
Requirements:
PC running Windows XP / Windows 7 /Windows 8 system to run our program to format USB flash drive.
USB flash drive. ( Avoid Sandisk/Transcend)
Important Please Note :
You need to swap out the OLD Floppy Disk Drive with this emulator Unit in the controller. So know how of swapping a Floppy Disk Drive out for this new USB Drive is required for install.
Operation instructions are included via PDF, as well as a 3-4 minute video instruction on how to use the emulator which will be sent via a link in eBay messages.
